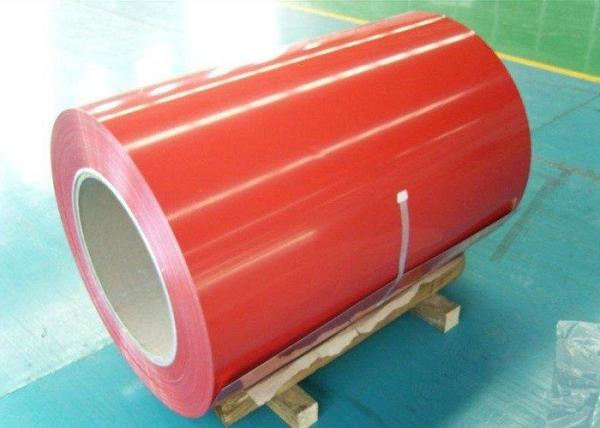

Self Cleaning Prepainted Galvanized Steel Sheet / PPGI Steel Plate Width 914mm - 1250mm

Wuhan Hanke Color Metal Sheet Co., Ltd.
Contact Now
    Buy cheap Self Cleaning Prepainted Galvanized Steel Sheet / PPGI Steel Plate Width 914mm - 1250mm from wholesalers

    Buy cheap Self Cleaning Prepainted Galvanized Steel Sheet / PPGI Steel Plate Width 914mm - 1250mm from wholesalers
    • Buy cheap Self Cleaning Prepainted Galvanized Steel Sheet / PPGI Steel Plate Width 914mm - 1250mm from wholesalers

    Self Cleaning Prepainted Galvanized Steel Sheet / PPGI Steel Plate Width 914mm - 1250mm

    Ask Lasest Price
    Brand Name : HANKE
    Model Number : DC51D DX51D SGCC ASTM
    Certification : ISO, KS
    Price : negotiate
    Payment Terms : L/C, T/T
    Delivery Time : 300000 per year
    • Product Details
    • Company Profile

    Self Cleaning Prepainted Galvanized Steel Sheet / PPGI Steel Plate Width 914mm - 1250mm


    Width 914mm-1250mm Self-Cleaning Prepainted Galvanized Steel Coil For Buildings


    1. Description
    Brief introduction: Using Hot Galvanized Steel Coil as the substrate, color coated steel coil is made by first going through surface pretreatment, then the coating of one or more layers of liquid coating by roll coating, and finally baking and cooling. The coatings used including polyester, silicon modified polyester, high-durability, corrosion-resistance and formability.
    Features: No need of manually clean, with the rain washing can be relized in heavy pollution area of roof and metope lasting clean
    Purpose: Using in industrial dust pollution area, sand area.


    2. Specification

    No.ParameterDescription
    1CommodityPrepainted Galvanized Steel Coils(PPGI)
    2SubstrateGalvanized Steel Coils
    3GalvanizingJIS 3302 / ASTM A653 / EN10143
    4Zinc Coating40-275GSM(both side)
    5PrepaintingJIS3312/ASTM A755/A755 M/EN10169-1
    6Type of CoatingPE,PVDF,SMP,HDP,RMP ect.
    7Painting ThicknessTop: 15-25microns/ Bottom: 5-7microns
    8Steel ColorRAL Standard
    9Steel Thickness0.2-1.2mm
    10Base MaterialSGCC, SGCH, DX51D+Z, DX51D+AZ
    11Coil Width600~1250mm
    12Coil Weight10mt max
    13Coil ID508mm or 610mm
    14PackageStandard sea-worthy packing
    15CertificateISO9001, KS D 3520


    3. Packing

    1) 4 eye bands and 4 circumferential bands in steel
    2) Galvanized metal fluted rings on inner and outer edges
    3) Galvanized metal and waterproof paper wall protection disk
    4) Galvanized metal and waterproof paper around circumference and bore protection


    4. Application:

    Construction: prefabricated house, steel house, mobile house, modular house, villa, bungalow design, portable house, ready made house, kiosk booths, steel building…

    Container manufacturing

    Household Appliances and furniture

    Others, like machinery structure parts, manufacturing shells of motors…


    5. Quality Assurance

    We have our own Physical & Chemical Testing Center Lab to guarantee our product quality. Our test items & instrument fully meet international standards.
    HANKE has already passed the authentification by the ISO9001, ISO14001 and KS D 3520 in succession and established a completed set of quality assurance system, and under this system, there has a complete set of regulations for ordering, order handling, quality design, purchasing raw materials, working production schedule, production, test, inspection, packaging, storage, delivering, etc.

    6. Our service:

    1) Free sample offered;
    2) Flexible payment term with L/C at sight,TT ,ect;
    3) Big quantity supply and short delivery time;
    4) Stable and reliable quality
    5) Long term after-sale service.
