0.35*1220*C Foam Colorful Pre Painted Steel Sheet For Steel Roofing / Cold Room

Wuhan Hanke Color Metal Sheet Co., Ltd.
Contact Now
    Buy cheap 0.35*1220*C Foam Colorful Pre Painted Steel Sheet For Steel Roofing / Cold Room from wholesalers

    Buy cheap 0.35*1220*C Foam Colorful Pre Painted Steel Sheet For Steel Roofing / Cold Room from wholesalers
    • Buy cheap 0.35*1220*C Foam Colorful Pre Painted Steel Sheet For Steel Roofing / Cold Room from wholesalers

    0.35*1220*C Foam Colorful Pre Painted Steel Sheet For Steel Roofing / Cold Room

    Ask Lasest Price
    Brand Name : HANKE
    Model Number : DC51D DX51D SGCC ASTM
    Certification : ISO, KS
    Price : negotiate
    Payment Terms : L/C, T/T
    Delivery Time : 300000 per year
    • Product Details
    • Company Profile

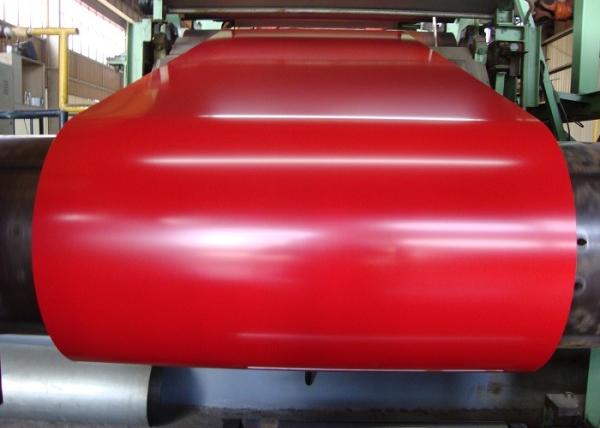

    0.35*1220*C Foam Colorful Pre Painted Steel Sheet For Steel Roofing / Cold Room


    0.35*1220*C Foam Colorful Prepainted Galvanized Steel Coil Roofing


    1. Introduction of base metal


    Hot-dip zinc coated base metal

    The prepainted steel sheet with hot-dip zinc-coated base metal as its base metal not only has the protective function of zinc coating but also has an isolation and pretection function with its organic layer that prevents it from rusting and prolongs its service span longer, than that of hop-dip zinc steel sheet.


    Hot-dip alu-zinc base metal

    The hot-dip alu-zinc base metal adopts the hot-dip zinc-aluminum coated steel sheet(55% Al-Zn) as its prepainted base metal.

    The corrosive resistance of the hot-dip alu-zinc coated steel sheet is twice to five times as much as that of the hot-dip zinc-coated base metal.

    Neither serious oxygenation nor oxide scale might appear while continuously or intermittently working with an ambient temperature up to 490℃.


    2. Specification


    STANDARDJISG3312/ASTM A755M /GBT12754/EN10142
    THICKNESS0.20~1.50MM
    WIDTH1250MM MAX.
    ZINCZ180 MAX.
    PAINT15~20 MICRONS ON TOP SIDE, 5~7 MICRONS ON BACK SIDE
    PAINT LAYERPRIMER+PAINT/PRIMER OR PRIMER+PAINT
    PAINT TYPERMP, SMP, HDP, PVDF
    PAINT BRANDKCC, AKZO NOBEL,TWIN TIGERS, NIPPON
    PROTECTION FILMAVAILABLE
    PACKAGINGFACTORY STANDARD EXPORT PACKING
    COIL ID508MM OR 610MM
    COLORRED,BLUE,IVORY,GREY, RAL9002,RAL9003, ETC.
    COIL WEIGHT12MT MAX.

    3. Applications


    ApplicationsSteel Roofing,cold room, sandwich panel,floor decking,ceillings,workshop, mobile house, agriculture warehouse, residential precast unit, corrugated roof, wall, rainwater drainage pipe, door, door case, light steel roof structure, folding screen,ceiling, elevator, stairway,

    4. Category & Coding of Prepainted Steel Sheet


    ClassificationItemCode
    ApplicationsConstruction external useJW
    Construction internal useJN
    Steel windowsGC
    Household applianceJD
    FurnitureJJ
    OthersQT
    Surface FinishNormal coatedTC
    EmbossedYA
    PrintedYI
    Types of top coatingsPEPE
    Silicon moodified polyesterSMP
    High-durability polyesterHDP
    Polyvinylidene fluoridePVDF
    Base MetalElectro-galvanized base metalZE
    Hot-dip zinc coated base metalZ
    Hot-dip Al-Zn steel sheetAZ
    Coating surface structure of ot dip galvanized substrateSmall SpangleX
    Zero SpangleM
    Pretreatment types for substrate surfaceNormal chemical pretreatmentC
    Chrome free chemical pretreatmentC5
    Coating typeTop side two coats, bottom side one coatings2/1
    Top side two coatings, bottom side two coatings2/2
    Top side two coatings, bottom side two coatings2/1M

    5. Advantages of PPGI:


    a. Light weight,beutiful took,excellent anti-corrosion performance.

    b. Acid&alkali resistant

    c. Excellent mechnical strenth,easily molding.

    d. Well coating adhesion,which can keep fresh colour for a long time


    6. Our service:


    1) Free sample offered;

    2) Flexible payment term with L/C at sight,TT ,ect;

    3) Big quantity supply and short delivery time;

    4) Stable and reliable quality

    5) Long term after-sale service.
